E05 EEOBD WIFI car diagnostic instrument OBD2 car detector ELM327 OBDII

Model: EEOBD-E05
$38.00 $26.00
-+
Our Guarantee

We truly believe we carry some of the most innovative products in the world, and we want to make sure we back that up with a risk-free 90-day guarantee.

If you don't have a positive experience for ANY reason, we will do WHATEVER it takes to make sure you are 100% satisfied with your purchase.

Buying items online can be a daunting task, so we want you to realize that there is absolutely zero is absolutely zero risk in buying something and trying it out. We support refund if you are not satisfied with it.

We have 24/7/365 Ticket and Email Support. Please contact us if you need assistance.

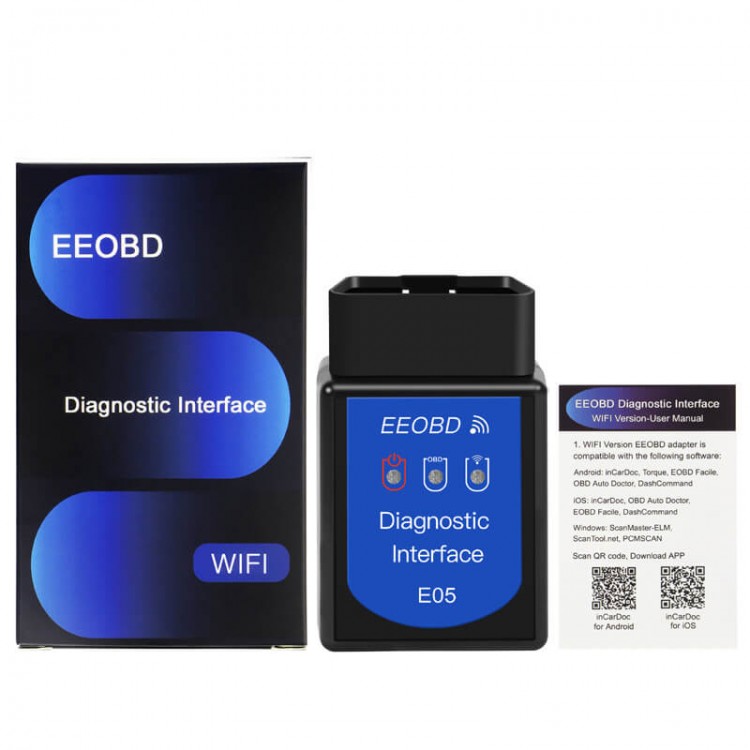

Product packages include:
EEOBD-E05 WIFI Car Auto Diagnostic Interface Scanner x 1
English operating instructions x 1
Box x 1

EEOBD-E05 Compatible devices and software:
Android phone: TORQUE software
Symbian phone: OBDscope software
IOS phone: inCarDoc software
Windows 7 / XP system computer: ScanMaster-ELM software

EEOBD-E05 Communication parameters:

Communication method: WIFI
Connection password: no password required
WIFI effective distance: within 10 meters of obstacles; within 30 meters of obstacles
Output protocol: RS232
Baud rate: 38400

EEOBD-E05 Product parameters:
Product material: ABS
Product net weight: 34g
Product gross weight: 44g
Product size: 7*4.4*2.5cm
Packing size 11*6.5*2.5 cm

EEOBD-E05 Working parameters:
Working voltage: 9-16V
Working current: 45 mA
Working temperature: -40 ° C to 100 ° C

EEOBD-E05 Supported vehicle agreements
:
1) ISO9141-2 (5 baud initialization, 10.4K baud)
2) ISO14230-4 KWP (5 baud initialization, 10.4 Kbaud)
3) ISO14230-4 KWP (Quick Initialization, 10.4 Kbaud)
4) ISO15765-4 CAN (11-bit ID, 500 Kbaud)
5) ISO15765-4 CAN (29-bit ID, 500 Kbaud)
6) ISO15765-4 CAN (11-digit ID, 250 Kbaud)
7) ISO15765-4 CAN (29-bit ID, 250 Kbaud)
8) SAE J1850 PWM (41.6 Kbaud)
9) SAE J1850 VPW (10.4 Kbaud)
-SAE J1939 CAN (29-bit ID, 250 * Kbaud)
-USER1 CAN (11 * bit ID, 125 * Kbaud)
-USER2 CAN (11 * bit ID, 50 * kbaud)

EEOBD-E05 features:
1. Bring your own WIFI, no need to connect
2. Plug and play, quick installation
3. Small size, easy to carry, does not affect driving after installation

EEOBD-E05 function:
The EEOBD-E05 is a new high quality automotive fault detector in 2020 with the following features:
1. Read the fault code and display the code definition
2. Clear the general fault code and turn off the fault indicator (some important fault codes need to be repaired before they can be completely cleared)
3. Read real-time speed
4. Engine speed
5. Coolant temperature
6. Battery voltage
7. Vehicle agreement type
8. Vehicle identification code
9. Display sensor data
10. Calculate the load value
11. Fuel system status
12. Short-term fuel adjustment
13. Long-term fuel adjustment
14. Absolute throttle position
15. Oxygen sensor voltage
16. Short-term fuel adjustment
17. Fuel system status
18. Fuel pressure
19. Throttle pressure
20. Timing in advance
21. Intake air temperature
22. Air flow and more.

EEOBD-E05 Vehicles are not supported:
E05 products do not support trucks, trucks, carts, and 24V powered vehicles.

EEOBD-E05 Support vehicles:
The E05 product supports most of the 12V-powered cars produced after 1996, such as the following models:
Honda Accord 2006 JDM (ISO).
Honda Accord Euro R 2004 JDM (ISO).
Honda City GD8 (ISO).
Honda Civic ES 1.6A (ISO).
Honda Integra Type R DC5 JDM (ISO).
Sir Honda 1.4M (ISO).
Mercedes-Benz 2001/02/03 W203 C200K (ISO).
BMW X5 2002(ISO)-3,-5 / X5 / Z3 / Z4 / Z8 / 740I / 740L / 750IL,
Chevrolet Music (ISO).
Citroen C3 2004 (ISO).
Daihatsu YRV 2005 (ISO).
Daihatsu YRV Turbo 2006 (ISO).
Fiat Tipo 2002 (ISO).
Ford New Oaks 2006 (CAN).
Hyundai Accent 2004 (ISO).
Hyundai Getz 1.3A 2004 (ISO).
Hyundai Getz 1.6M 2004 (ISO).
Modern Matrix 2004 (ISO).
Modern Santa Fe 2.4A (ISO).
Hyundai Sonata GLS (ISO).
Hyundai Sonata 2005 (ISO).
Modern Tuscani FX (ISO).
Kia Carens 2005 (ISO).
Kia Magentis 2005 (ISO).
Kia Rio LS (ISO).
Kia Sorento SUV 2005 (ISO).
Lexus es300 Mazda 2 (CAN).
Mazda 5 (CAN).
Mazda 6 (CAN).
Mazda Premacy 2001 (ISO).
Mazda RX8 (CAN).
Mitsubishi Colt 2003 (ISO).
Mitsubishi Eclipse (GST - Turbo Car can test 1995-2000; 8.2 * 4.6 * 2cm RS / GS 1994-1996 GS can do; Turbo Car is 1996-2000, only speed and TPS, can clear DTCS).
Mitsubishi Pajero 3.5 V6 2006 (ISO).
Peugeot 206 2001 can only display RPM.
Peugeot 206 (ISO).
Peugeot 407 (ISO).
Renault Megane II 2005 (ISO).
Renault Kangoo 2006 (ISO).
Subaru Impreza 1.6TS 2002 (ISO).
Subaru Impreza WRX 2005 (ISO).
Proton Perdana V6.
Subaru Legacy GT 2005.
Peugeot 206 2000.
Suzuki Jimny 1.3 2000.
Toyota Camry 2.0A 2004 (ISO)
Toyota Camry 2.4A 2005 (ISO)
Toyota Corolla Altis 1.6A 2005 (ISO)
Toyota Corolla GLXi G8 1999 (ISO)
Toyota Corolla G9 2002 (ISO)
Toyota Vios 2004 (ISO)
Nissan Sunshine (N16).
Nissan Cefiro (Scorpio) 2005.
Nissan Sentra 1.8 2000/2005.
Nissan Cefiro (Scorpio) 2005.
Nissan Sunny B14 (ISO).
Nissan Sunny VIP FB15 (ISO).
Nissan X-Trail 2.0L 2004 (ISO).
Nissan X-Trail 2.5L 2004 (ISO).
(Because there are many models, not all of them are listed here)
